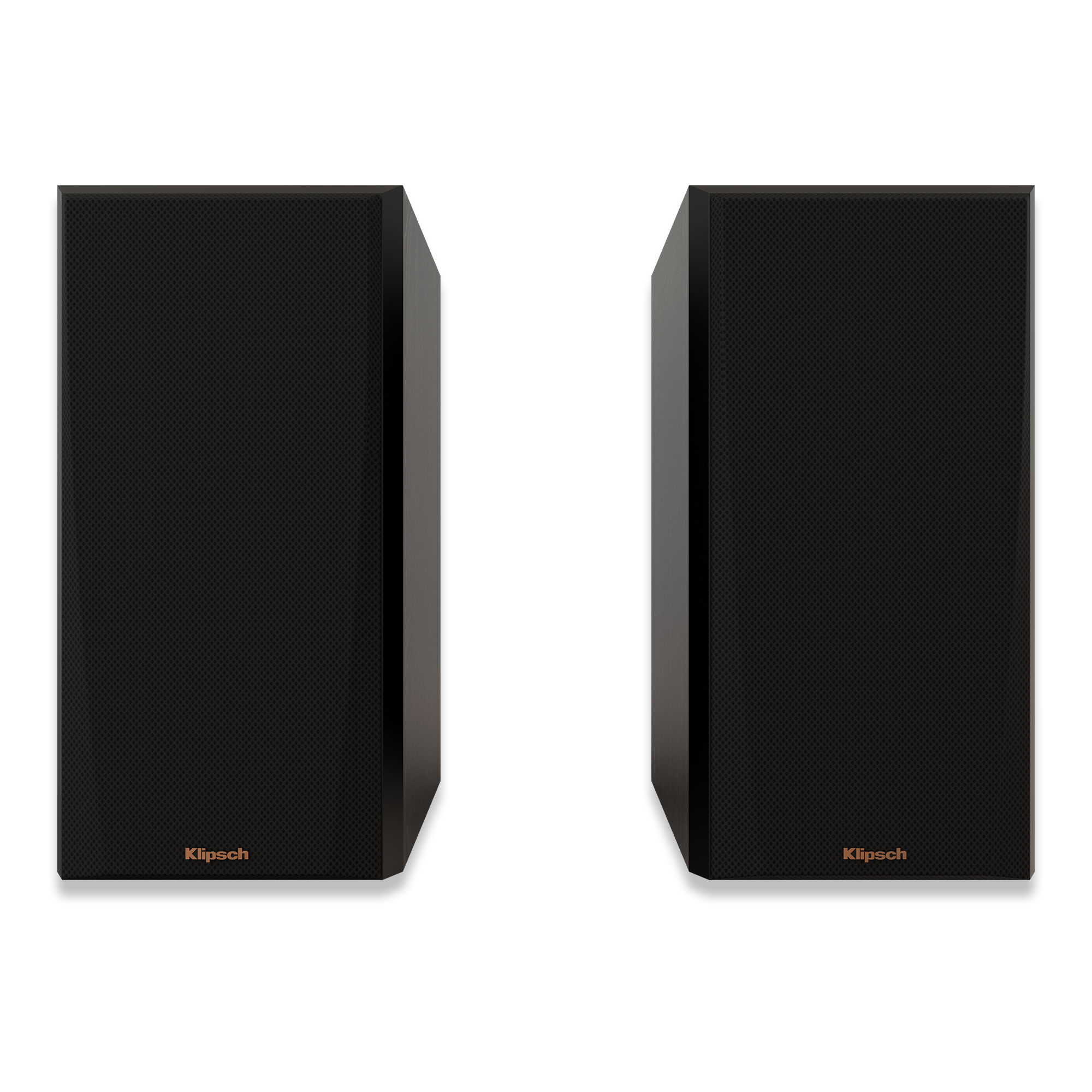

RP-500M II
BOOKSHELF SPEAKERS
BIGGER HORN, BETTER SOUND
A new, larger 90° x 90° silicone composite hybrid Tractrix® horn provides incredibly efficient transfer of high-frequency waves into the listening area for crisper, clearer sound. The phase plug and compression molded silicone face ensure smooth frequency response.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive 1" LTS minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference Premiere Series, making it a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.
ALL-NEW CERAMETALLIC WOOFER
A signature feature on the Reference Premiere series speakers, the 5.25" Cerametallic™ woofer has been updated for absolutely flawless sound reproduction, minimum distortion, and maximum efficiency. The redesigned woofer will deliver the power, detail, and emotion you expect from a Klipsch Reference Premiere speaker.
TRACTRIX PORT
Utilizing Tractrix geometry, the Reference Premiere port allows for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies and cleaner, more powerful bass.
NEW LOOK | AMAZING SOUND
HIGH-FIDELITY HOME AUDIO
Redesigned, the Reference Premiere Series combines Klipsch signature acoustic expertise with cutting-edge technology to deliver the new gold standard in premium home theater and hi-fi listening solutions.
Specifications | |
---|---|
HIGH FREQUENCY DRIVER | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
LOW FREQUENCY DRIVER | 5.25" Cerametallic Cone Woofer with Faraday rings |
ENCLOSURE MATERIAL | MDF (Internally Braced) |
ENCLOSURE TYPE | Bass Reflex via rear-firing Tractrix® Port |
INPUTS | Single aluminum binding posts |
HEIGHT INCHES (MM) | 13.56" (34.4 cm) |
WIDTH INCHES (MM) | 6.81" (17.3 cm) |
DEPTH INCHES (MM) | 10.65" (27.0 cm) |
PRODUCT WEIGHT LBS (KG) | 13.1lb (5.95kg) |
FINISH | Ebony, Walnut |
CROSSOVER FREQUENCY | 1530Hz |
NOMINAL IMPEDANCE | 8 Ohms Compatible |
POWER HANDLING (CONT/PEAK) | 75W/300W |
SENSITIVITY* | 92dB @ 2.83V / 1m* |
FREQUENCY RESPONSE | 50-25kHz +/- 3dB |
