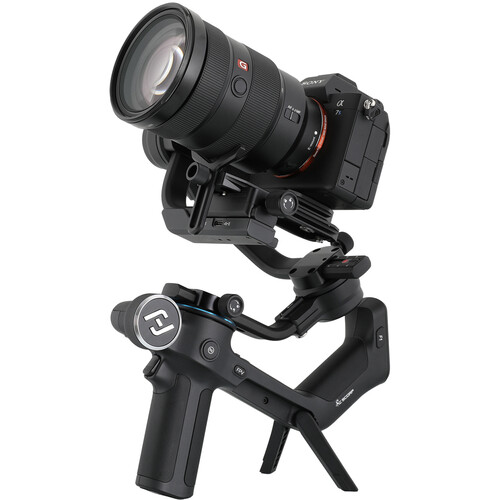

Feiyu Tech 3-Axis Flagship Gimbal for DSLR & Mirrorless - SCORP

SUPER WEAPON FOR SINGLE SHOOTING

SPECIALLY BUILT FOR MIRRORLESS CAMERAS

From assembly space to payload performance and interactive control,It is specially built for Sony A7 series,and compatible with mirrorless and DSLR cameras in various sizes.

INNOVATIVE DESIGN

MAKES FILMING MORE COMFORTABLE

INTGRATED HANGING HANDLE

The lens can be controlled easily whether you shoot upright or upside down.

TILTED HANDLE HOLDING

With a bevelled handle and round edge, keep your hand at its most comfortable all the time.

THREE-AXIS MOTOR LOCK

All axis can be locked to keep the gimbal in a fixed position

STAND WITHOUT TRIPOD

No tripod required, the gimbal comes with a folding aileron bracket.

EASILY ACHIEVE A VARIETY OF SHOTS

2500MAH LITHIUM BATTERY UPGRADED EFFICIENCY

Runtime of up to 8 hours.

Support PD 18w fast charging, it only takes 5 minutes for 30 minutes of charge.

Accessories

• Storage box x1
• Subject x1
• Camera cable x1
• Data cable x1
• Tripod x1
• Quick release plate x1
• Height increasing block x1
• Camera fixed screws x1
• Lens holder fixed knob x1
• Lens holder x1

Quick Release Plate

Quick release plate (115x38x10mm) and optional camera backing base (50x38x10mm) are compatible with ARCA quick release system.

Can be removed from the gimbal together with the camera, and fast switch between popular quick release systems without re-assembling the camera.

Follow Mode

• PF: Pan follow, only the pan axis follows the movement of user's hand
• PTF: Pan and tilt follow, where both the pan and tilt axes follow the movement of user's hand, but roll axis does not
• FPV: Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand
• Lock: All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of the camera fixed
• FFW: flash follow, where all 3 axes follow the movement of user's hand in high follow speed

How To Control The Camera

While connecting gimbal and cameras with cable (standard accessories for SONY, CANON, NIKON, Panasonic), users can control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more).

Motor Power Auto Tune

Auto Tune motor power is available to the App or Touch Screen. Gimbal auto tune the motor power according to the camera you install.

Auto Tune operation: Enter the motor power setting through touch screen, and tap Auto Tune, then put gimbal on the table until the display prompt calibration complete.

Gimbal will vibrate slightly while Auto Tune to weigh the camera, it’s a normal phenomenon.

Extended Ports

At the bottom of the handle: 1/4 inch thread hole*1, which can mount Tripod;

Below the multifunction knob: Type-C charging port*1;

In front of fixed plate: Type-C extension port*2 to connect focus motors;

At the back of fixed plate: Type-C camera control port*1, Type-C image transmission port*1;

In front of quick release plate: 1/4 inch thread hole*1, for installation of lens holder;

On the top of vertical cross arm: 1/4 inch thread hole*1, for installation of ARRI Rosettes Expansion Accessory;

Standard Accessories

• Feiyu SCORP*1
• Data cable USB 2.0 to Type-C*1
• Shutter cable Type-C to Micro (A03)*1
• Shutter cable Type-C to Type-C (C02)*1
• Shutter cable Type-C to TRS2.5 (T02)*1
• Sony shutter cable Type-C to Multi*1
• Panasonic shutter cable (DC2.5mm) Type-C to 2.5mm*1
• Tripod*1
• Quick release plate*1
• Camera backing base*1
• Lens holder*1
• Lens holder screw*1
• Camera fixed screw*3
• Storage bag*1

Optional Accessories

• Monopod (Pay attention to its max payload);
• Carbon Fiber Extension Rod;
• Feiyu SCORP Focus Motor;
• ARRI Rosettes Expansion Accessory;
• Feiyu Portrait Quick Release Plate;
• Feiyu SCORP Image Transmission Transmitter;
• wireless microphone kit： wireless microphone ( transmitter terminal )*1、 wireless microphone (receiving terminal)*1，wireless clip-on microphone *1;
• Body-mounted Weight Support for installing flash lamp/ soft light/ Microphone and other devices via cold shoes;
