The ultimate 4K experience for the DIY home theatre.

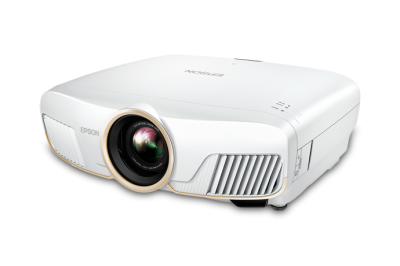

The Epson® Home Cinema 5050UB 4K PRO-UHD1 projector delivers an amazing 4K home theatre experience for the DIY enthusiast. Capable of displaying an astonishing 2,600 lumens for both colour and white brightness2 – along with proprietary processors for resolution enhancement, colour and image processing – the Home Cinema 5050UB produces incredible brightness, colour accuracy and image detail to faithfully display all your favorite content the way it was meant to be seen. If you’re looking for an amazing 4K projection experience to power your new home theatre build – this could be it. Now that’s Projection Perfected.
4K PRO-UHD1 Projection Technology
A new type of 4K home theatre experience utilizing advanced processing for resolution enhancement, colour and image processing – resulting in an exceptional 4K home theatre experience
True 3-Chip Projector Design
Advanced 3LCD technology displays 100% of the RGB colour signal for every frame. This allows for an outstanding colour gamut while maintaining excellent brightness, without any “rainbowing” or “colour brightness” issues some may see with other projector technologies
Pixel-Shift Processor
Advanced pixel-shifting processor precisely controls three high-definition LCD chips to parallel process millions of pixels of information. This new type of resolution enhancement technology1 results in an exceptionally sharp 4K visual experience
HDR Processor
Full 10-bit HDR3 color processing accepting 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance
Digital Imaging Processor
Realtime 12-bit analog-to-digital video processing for smooth tonal transitions, while helping to eliminate banding, blocking and other compression artifacts from the final visual performance. This powerful processor faithfully reproduces the source material the way it was intended to be shown
Outstanding Brightness
Capable of displaying 4K content at an incredible 2,600 lumens for both colour and white brightness2. This not only provides for a wider performance envelope but allows for an exceptional HDR performance
- Epson UltraBlack™ Technology — Epson created a Proprietary Compensation Filter that controls the polarization of light itself. This allows Epson to suppress any stray light within the signal, producing an outstanding Dynamic Contrast ratio of 1,000,000:1.
- Precision HDR Adjustment — Realtime HDR curve adjustment allowing for 16-steps of control to fine-tune the HDR performance – regardless of the content being displayed.
- Extreme Colour Gamut — One of the first commercially available home theatre projectors capable of displaying the full three-dimensional DCI-P34 colour space. This extreme colour performance is 50% wider than typical 1-Chip Rec. 709 projectors and allows for a truly professional-level of colour accuracy.
- Epson Precision Lens Technology — Designed for zero-light-leakage, all Epson Precision Lenses utilize a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity.
Eco Features
- RoHS compliant
- Recyclable product
What's In The Box:
- Home Cinema 5050UB Projector
- Power cord
- Two HDMI cable clamps
- Remote control with (2) AA batteries
- Quick Setup Guide
Other Home Projector:
- Cinema Filter:Automatically adjusts to colour mode;On: Cinema, Digital Cinema ,Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema)
- Auto Iris:Automatically adjusts to video source;Off/On: High-speed or Normal, 2D and 3D mode
Terminal Inputs:
- 2x HDMI (HDCP 2.2)
- 1x USB Type A (for optical HDMI cable 300 mA max. power supply only)
- 1x USB (for wireless and firmware)
- 1x Mini USB (service only)
- 1x LAN (RJ45)
- 1x Computer/D-sub 15 pin
- 1x RS-232c
- Trigger out 12 V DC, 200 mA maximum
| Projector Details | |
|---|---|
| Display Performance: | 4K/UHD @ 60 Hz compatible, HDR103, 3-dimensional DCI-P3 color Gamut4, 4Ke1, 1080p; HD, 2D, 3D |
| Parental Controls: | |
| Power Button Lock: | Hinders projector from being turned on without parental supervision |
| Other Home Projector | |
| Computer Compatibility: | PC, Mac® |
| Frame Interpolation: | 1080p @24 Hz |
| Super Resolution: | 2D and 3D |
| Projection Lens: | |
| Lens Cover: | Powered, Slide Lens Shutter |
| Lens Shift: | Vertical: ±96.3(H center, powered) ; Horizontal: ±47.1(V center, powered) |
| Throw Ratio Range: | 1.35 – 2.84 |
| Focal Length: | 22.5 mm – 46.7 mm |
| Zoom Ratio: | 1.0 – 2.1 |
| F-number: | 2.0 – 3.0 |
| Type: | Powered focus/optical zoom/lens position |
| GENERAL | |
| Security: | Kensington Security Lock Port |
| Weight: | 24.7 lb |
| Operating Temperature: | 41 ° to 95 °F (5 ° to 35 °C) |
| Specifications Projector | |
| Projected Output: | HD, 2D, 3D, 1080p, 4K x 2K |
| Colour Reproduction: | Full-colour (up to 1.07 billion colours) |
| Colour Processing: | Full 10-bit (partial 12-bit) |
| White Balance: | 8-point adjustment |
| Contrast Ratio: | Up to 1,000,000:1, Auto Iris on |
| Keystone Correction: | Vertical: ±30 degrees (Manual) |
| Size - projected distance: | 50" – 300" (Zoom: Wide and Zoom: Tele) |
| Lamp Life: | Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)7 |
| Lamp Type: | 250 W UHE |
| Maximum Resolution: | 4096 x 2160 |
| Supported Resolution: | 3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/i |
| Resolution: | 4K Enhancement1 (1920 x 1080 x 2) |
| Aspect Ratio: | 16:9 widescreen (4:3 resize,16:10 resize) , Compatible with 4:3 with Normal, Full or Zoom Modes |
| White Brightness - White Light Output: | 2600 lumens2 |
| Colour Brightness - Colour Light Output: | 2600 lumens2 |
| Projection Method: | Front / Rear / Ceiling mount |
| Projection System: | Epson 3LCD, 3-chip optical engine |
| Driving Method: | Poly-silicon TFT Active Matrix, 0.74"-wide panel |
| Projector Details | |
| Colour Modes: | 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema; 3D: Dynamic, Cinema |
| Input Signal: | Composite: 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K ; HDMI: TMDS |
| Fan Noise: | 20 dB – 31 dB |
| Projector Dimensions | |
| Including feet: | 20.5" x 17.7" x 7.6" (W x D x H) |
| Remote Control | |
| Features: | Front and rear directional |
| Operating Distance: | 32 feet (10 meters) |
| Operating Angle: | Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees , Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 – + 70 degrees |
| Power | |
| Power Supply Voltage: | 100–240V AC ± 10%, 50/60 Hz |
| Power Consumption: | ECO Mode: 283 W; Normal Mode: 373 W |
