Robust, compact WXGA laser projector with 5,000 lumens.
The compact, affordable PowerLite L500W laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 5,000 lumens colour/white brightness1. This robust projector also offers WXGA resolution for widescreen images. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours2. And, it offers virtually maintenance-free operation with no lamps. Plus, it features a Dynamic contrast ratio up to 2,500,000:1. It also features advanced installation features and enterprise-level wireless security support (module sold separately).
Bright, vivid colour
5,000 lumens colour/white brightness1.
Colourful, widescreen images up to 280"
WXGA resolution (1280 x 800)
Breakthrough laser technology
features a laser light source of up to 20,000 hours2; plus, Instant ON/OFF
Extraordinary sharpness and detail
up to 2,500,000:1 Dynamic contrast ratio
Optional wireless networking with enterprise-level security
plus wireless content sharing with Epson iProjection™3; wireless module sold separately
Virtually maintenance-free operation
no lamps
- Versatile connectivity — supports 2x HDMI®, VGA, RJ-45, stereo mini and more
- Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
- Constant Brightness Mode4 — fine-tune the brightness setting to help maximize run time
- Remote management and control tools — compatible with Crestron®, AMX®, PJLink and more; offers easy access and maintenance
Eco Features
- RoHS compliant
- Recyclable product5
- Epson America, Inc. is a SmartWay™ Transport Partner6
Projector Details:

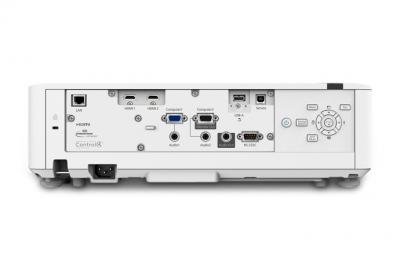

Interfaces:
- 2x HDMI
- Analog: D-sub 15 pin
- 1x Control I/O: RS-232C D-sub 9 pin
- USB-I/O: Type A 1x; Type B 1x
- Wired LAN RJ45
- Wireless LAN Optional Accessory
- Audio in (stereo): 2x
- Audio out (stereo): 1x
- Fan Noise:Normal: 37 dB; ECO: 25 dB
What's In The Box:
- PowerLite L500W Projector
- Power cord
- Computer cable (VGA)
- Remote control and batteries
- Quick setup poster
| Specifications Projector | |
|---|---|
| Projection System: | RGB Liquid Crystal Shutter Projection System |
| Projection Method: | Front, Front/Ceiling, Rear, Rear/Ceiling |
| LCD Screen: | 0.59" (D8 with C2Fine™) |
| Driving Method: | Poly-silicon TFT Active Matrix |
| Pixel Number: | 1,024,000 dots (1280 x 800) x 3 |
| Colour Brightness - Colour Light Output: | 5,000 lumens1 |
| White Brightness - White Light Output: | 5,000 lumens1 |
| Aspect Ratio: | 16:10 |
| Resolution: | 1280 x 800 (WXGA) |
| Throw Ratio Range: | 1.38–2.24 |
| Size - projected distance: | 60" screen: 1.79–2.92 m |
| Keystone Correction: | Vertical: ±30 degrees; Horizontal: ±30 degrees |
| Contrast Ratio: | Up to 2,500,000:1 |
| Colour Processing: | 10 bit |
| Colour Reproduction: | Up to 1.07 billion colors |
| Light Source Life: | Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours |
| Illumination Technology: | Laser Diode |
| Effective Scanning Frequency Range | |
| Pixel Clock: | Analog: 13.5–162 MHz (up to UXGA 60 Hz) Digital: 13.5–162 MHz (up to UXGA 60 Hz) |
| Horizontal: | Analog: 15–92 kHz Digital: 15–75 kHz |
| Vertical: | Analog: 50–85 Hz Digital: 24/30/50/60 Hz |
| Projection Lens | |
| Type: | Optical Zoom (Manual)/Focus (Manual) |
| F-number: | 1.5–1.7 |
| Screen Size: | Zoom: Wide: 29"–280" [0.85–8.45 m]; Zoom: Tele: 29"–280" [1.40–13.71 m] |
| Focal Length: | 18.2–29.2 mm |
| Zoom Ratio: | 1–1.6 |
| Lens Cover: | Lens cap (without string) |
| Projector Dimensions | |
| Including feet: | 17.32" x 11.97" x 5.35" (W x D x H) |
| Excluding feet: | 17.32" x 11.97" x 4.73" (W x D x H) |
| Weight - with standard lens: | Approx. 16.3 lb/7.4 kg |
| Remote Control | |
| Operating Distance: | 8 m |
| Operating Angle: | Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees |
| Power | |
| Power Supply Voltage: | 100 – 240 V ±10%, 50/60 Hz AC |
| Power Consumption: | Normal: 337 W; Quiet: 254 W; Networked Standby 2.0 W; Energy Saving: 0.3 W |
