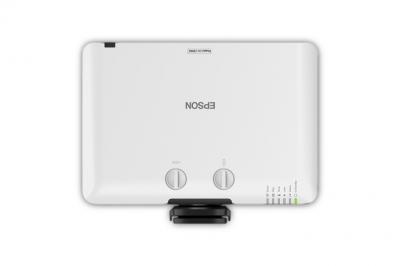

Robust, compact WUXGA laser projector with 5,000 lumens plus lens shift.
The compact, affordable PowerLite L510U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 5,000 lumens colour/white brightness1. This robust projector also offers WUXGA resolution and Full HD support. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours2. And, it offers virtually maintenance-free operation with no lamps. Plus, it features a Dynamic contrast ratio of up to 2,500,000:1. It also includes manual lens shift, enterprise-level wireless security support (module sold separately), and advanced installation features.
Bright, vivid colour
5,000 lumens colour/white brightness1.
Full HD, widescreen images up to 500"
WUXGA resolution (1920 x 1200); Full HD 1080p support
Breakthrough laser technology
features a laser light source of up to 20,000 hours2; plus, Instant ON/OFF
Virtually maintenance-free operation
no lamps
Extraordinary sharpness and detail
up to 2,500,000:1 Dynamic contrast ratio
Flexible installation
up to ±50 percent vertical and ±20 percent horizontal manual lens shift
- Optional wireless networking with enterprise-level security — plus wireless content sharing with Epson iProjection™3; wireless module sold separately
- Robust connectivity — supports HDBaseT™, 2x HDMI®, VGA, RJ-45, stereo mini and control management tools
- Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
- Constant Brightness Mode4 — fine-tune the brightness setting to help maximize run time
Eco Features
- RoHS compliant
- Recyclable product5
- Epson America, Inc. is a SmartWay™ Transport Partner
Projector Details:
Interfaces:
- HDBaseT 1x
- 2x HDMI
- Analog: D-sub 15 pin
- 1x Control I/O: RS-232C D-sub 9 pin
- USB-I/O: Type A 1x; Type B 1x
- Wired LAN RJ45
- Wireless LAN Optional Accessory
- Audio in (stereo): 2x
- Audio out (stereo): 1x
- Fan Noise:37 dB (Normal Mode), 25 dB (ECO Mode)
What's In The Box:
- PowerLite L510U Projector
- Power cord
- Computer cable (VGA)
- Remote control and batteries
- Quick setup poster
- Cable cover
| Specifications Projector | |
|---|---|
| Projection System: | RGB Liquid Crystal Shutter Projection System |
| Projection Method: | Front, Front/Ceiling, Rear, Rear/Ceiling |
| LCD Screen: | 0.67" (D10 with C2Fine™) |
| Driving Method: | Poly-silicon TFT Active Matrix |
| Pixel Number: | 2,304,000 pixels (1920 x 1200) x 3 |
| Colour Brightness - Colour Light Output: | 5,000 lumens1 |
| White Brightness - White Light Output: | 5,000 lumens1 |
| Aspect Ratio: | 16:10 |
| Resolution: | 1920 x 1200 (WUXGA) |
| Throw Ratio Range: | 1.35-2.2 |
| Size - projected distance: | 80" screen: 2.33–3.78 m |
| Keystone Correction: | Vertical: ±30 degrees; Horizontal: ±30 degrees |
| Contrast Ratio: | Up to 2,500,000:1 |
| Colour Processing: | 10 bit |
| Colour Reproduction: | Up to 1.07 billion colors |
| Light Source Life: | Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours |
| Illumination Technology: | Laser Diode |
| Effective Scanning Frequency Range | |
| Pixel Clock: | Analog: 13.5–162 MHz (up to UXGA 60 Hz) , Digital: 13.5–162 MHz (up to UXGA 60 Hz) |
| Horizontal: | Analog: 15–92 kHz , Digital: 15–75 kHz |
| Vertical: | Analog: 50–85 Hz , Digital: 24/30/50/60 Hz |
| Projection Lens | |
| Type: | Optical Zoom (Manual)/Focus (Manual) |
| F-number: | 1.5–1.7 |
| Screen Size: | Zoom: Wide: 50"–500" [1.44–14.76 m]; Zoom: Tele: 50"–500" [2.35–23.84 m] |
| Focal Length: | 20.0–31.8 mm |
| Zoom Ratio: | 1–1.6 |
| Lens Cover: | Lens cap (without string) |
| Projector Dimensions | |
| Including feet: | 17.32" x 11.97" x 5.35" (W x D x H) |
| Excluding feet: | 17.32" x 11.97" x 4.73" (W x D x H) |
| Weight - with standard lens: | Approx. 18.7 lb/8.45 kg |
| Remote Control | |
| Operating Distance: | 8 m |
| Operating Angle: | Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees , Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees |
| Power | |
| Power Supply Voltage: | 100 – 240 V ±10%, 50/60 Hz AC |
| Power Consumption: | Normal: 353 W; Quiet: 254 W; Networked Standby 2.0 W; Energy Saving: 0.3 W |
