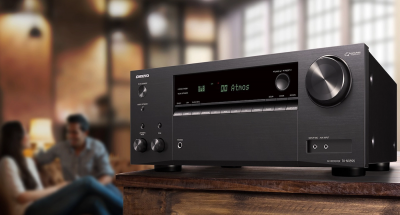

TXNR595 With six HDMI® inputs and dual outputs integrating players, TV, and projector, you’re set for a 4K HDR video experience inside Dolby Atmos® orDTS:X® sound delivered through any speaker layout. Dolby Atmos Height Virtualizer* and DTS Virtual:XTM* create an immersive 3D soundfield withoutheight or surround speakers connected, while Dolby Surround and DTS® Neural:X add overhead dimensionality to regular soundtracks when playedthrough layouts with height speakers. SMART AV ReceiverTM bundles Amazon Music, Spotify®, Pandora®, TIDAL, Deezer, and TuneIn together withWorks with Sonos, AirPlay 2*, DTS Play-Fi®, and FlareConnectTM solutions so you can enjoy wireless audio all around your home. Powered Zone 2speaker outputs can play the same or different sources (including HDMI) in one or both zones, and you can keep your surround layout connectedand switch between MAIN and Zone 2 in seconds. Joined by stress-melting features such as an all-new simple remote with DSP-based Vocal Enhancerfunction, and backed by DAA’s high-current muscle, this A/V powerhouse has everything it takes to make life great. *Enabled with a future firmware update.
Connectivity | |
---|---|
4K Passthrough | Yes |
Analog Pre-Outs | Subwoofer (x2) |
Speaker A/+B | - |
Powered Zone 2 | Yes |
Zone 2 Line Out | Yes |
Powered Zone 3 | - |
Zone 2 Video Out | - |
Zone 2 Digital to Analog Audio Conversion | Yes(Net/SPDIF/Bluetooth, HDMI Inputs 1-3) |
Zone 3 Line Out | - |
Whole House Mode | - |
FlareConnect Multi-room Audio | Yes |
Airplay & Airplay 2 | Yes |
Chromecast built-in | - |
Works with Google Assistant | - |
Supports Onkyo Remote App | Yes |
Internet Radio Capable | Yes |
Spotify Connect Support | Yes |
Tidal | Yes |
Amazon Music | Yes |
Streaming Audio From PC / Network | Yes |
Hi-Res Streaming Audio Formats | Yes (DSD 5.6 MHz/2.8 MHz; FLAC, WAV, AIFF, and ALAC to 192 kHz/24-bit) |
Streaming Audio From USB memory | Yes |
Wireless Network | IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz |
Bluetooth | YesX (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3) |
AMPLIFIER | |
Certified 4 Ohms Performance | Yes |
Discrete Output Stage Circuitry | Yes |
Amplifier Design | Linear Class A/B |
Independent Block Construction (Amp/Preprocessor) | - |
Independent Power Supply | - |
Bi-amp Capability For Front | Yes |
Processing | |
Dolby Atmos | Yes (5.2.2) |
Dolby Atmos Height Virtualizer | Yes |
32-Bit Digital Signal Processing Engine | Yes |
DTS:X | Yes |
Dolby Decoder | Dolby Atmos, Dolby True HD |
DTS Virtual:X | Yes(Enabled with a future firmware update) |
DTS Decoder | DTS:X, DTS-HD Master Audio |
ONKYO GAME Surround Modes | Yes(Rock, Sports, Action, RPG) |
VLSC for Noiseless Audio Processing | Yes |
THX Processing Mode | - |
CinemaFILTER | Yes |
AccuEQ Room Calibration | Yes(w/ AccuReflex) |
Phase-Matching Bass Boost | - |
Direct/Pure Mode | Yes/- |
Pure Direct Analog Path Mode | - |
Advanced Music Optimizer | Yes |
384K/32 Bit DACs | Yes |
192K/24 Bit DACs | - |
Connectivity | |
Analog Audio IN | 4 |
Phono Input | Yes |
Digital Audio IN (OPT/COAX) | 1 / 1 |
Composite Video I/O | - |
Component Video I/O | - |
Front Panel HDMI | - |
Front-Panel A/V | 1 (Analog) |
USB Input | Yes(Rear) |
HDMI I/O | 6 / 2(Main, Sub/Zone 2) |
AMPLIFIER | |
# Channels | 7.2 |
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 80 Watts, 0.08% THD |
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven) | 170 Watts, 10% THD |
Preamplifier Outputs | |
Dynamic Audio Amplification | Yes(for Clear and Realistic Sound) |
AMPLIFIER | |
H.C.P.S. (High Current Power Supply) | - |
Non-Phase Shift Amplifier | Yes |
THX Certified | - |
Continuous 6 Ohms Rated | Yes |
Connectivity | |
1080p to 4K Upscaling | Yes |
Analog To HDMI Upconversion | - |
HDMI Support for DVD-Audio, SACD, Multichannel PCM | Yes |
HDMI Support for Deep Color, x.v.Color, LipSync | Yes |
BT.2020 Support | Yes |
HDMI Support for 3D, Audio Return Channel and CEC | Yes |
HDMI Support for High Dynamic Range | Yes(HDR10 and Dolby Vision) |
HDCP 2.3 Copy-Protection Compatibility | Yes |
HDMI 4K/60 Hz- Capable HDMI Terminals | Yes |
MISCELLANEOUS | |
Warranty | 2 YEAR |
Detachable AC Cord | - |
Transparent High-Grade Speaker Terminals | - |
Solid Aluminum Front | - |
OSD Out | Yes |
Auto Speaker Calibration W/Mic. | AccuEQ w/ AccuReflex |
Smart Grid-Ready | Yes |
Hybrid Standby Function | Yes |
Pre-Programmed Remote | - |
Integration Access | |
12V Trigger | - |
RS-232 | - |
IR Input | - |
IR Output | - |
Ethernet | Yes |
ONKYO-RI System Control | - |
RIHD (Remote Interactive Over HDMI) | - |
