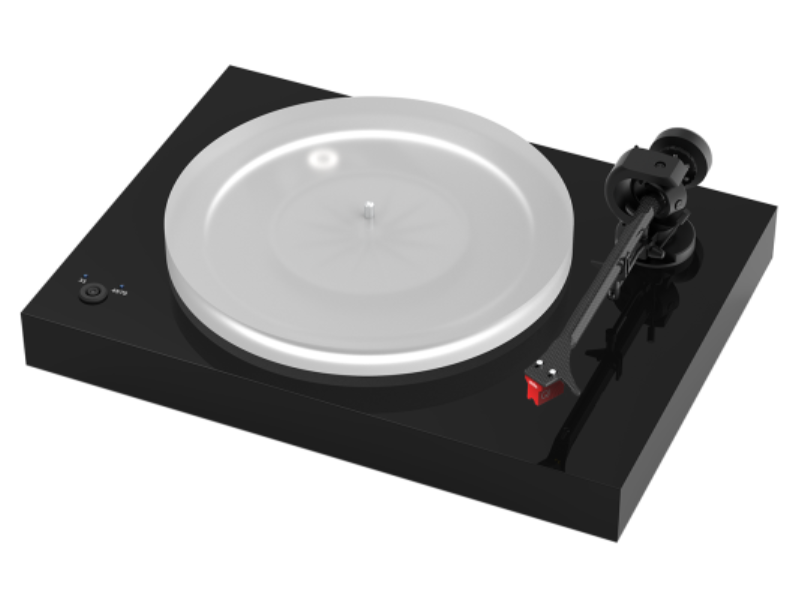

X2 B
The beginning of a balanced era.
Welcome to a new generation of X-Line turntables
The X2 B features our revolutionary True Balanced Connection
Turntables look back on a long history. Over time, many things have changed, not only from technical possibilities, but also from the environment. Wireless networks are omni present and countless electronic devices make your home „smarter“. This means there are now a lot of additional electromagnetic fields, which could interfere with your turntable‘s signal. This was simply not the case 30 years ago. To ensure the best connection to your phono preamplifier we designed our „True Balanced Connection“.
WHAT'S TRUE BALANCED?
Balanced audio connections are usually known from the professional sector like recording studios or live concerts. It is very important to have a stable & interference free connection, as these signals will be highly amplified. The same applies to the connection from your turntable to the phono preamplifier. The big advantage of a balanced connection is its ability to remove picked up noise and interferences. And best of all, cartridges by nature are already balanced signal transducers! With True Balanced your are simply using everything, literally everything, that your cartridge is picking up from the record groove. You are not throwing away half of the usable signal, like is done in typical single-ended RCA phono connections.
The X2 B comes with mini XRL and RCA outputs and with our standard semi-balanced Connect it Phono E RCA cable. By upgrading it to our fully balanced mini XLR to mini XLR version (available separately) and using a balanced phono stage, like our Phono Box S3 B or DS3 B, you are fully set-up for the True Balanced experience. This leads to increased dynamics, less noise and improved signal to noise ratios. You can imagine it, like hearing parts of your music that literally were not there before.
True Balanced
Unleash the full power
Connect your X2 B with one of our new True Balanced Phono Cables to your phono preamp and benefit from an interference-free signal with increased dynamics & lower noise level.
Mini XLR Output
One cable connects it all
We offer a wide range of balanced phono cables with different connectors to fit all our phono preamps. If you want to use your X2 B with a Phono Box S3 B you need a „Connect it Phono Mini XLR / Mini XLR“.
Balanced Preamps
A perfect match!
Pair your X2 B with one of our new balanced Phono Boxes and benefit from a fully balanced signal transmission to your phonp preamplifier. Check out our new Phono Box S3 B & DS3 B for further information.
EISA Award for True Balanced
Cartridges are balanced signal transducers by nature! Due to the internal wiring of MM cartridges, you'll need a MC cartridge to access the entirety of that balanced signal. The X2 B comes with an Ortofon Quintet Red MC cartridge factory aligned, and together with our new True Balanced Connection cables and our balanced phono stages you'll be able to access high-end features that were previously only available in the most expensive hifi categories. In combination with our Phono Box S3 B and X2 B, our True Balanced concept won the prestigious EISA Award for best Vinyl System!
The X2 B retains all the real high-end features the original X2 had on offer.
Azimuth & VTA
Fully adjustable
The X2 B comes with fully adjustable Azimuth & VTA. It offers you the possibility to modify your X2 as you want it.

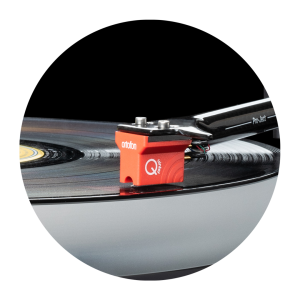

Quintet Red
High-end MC cartridge
The Ortofon Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth & is the perfect partner for our new X2 B.
2 kg Platter
Resonance free acryl
The perfect platform to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.
33/45/78 RPM
High precision motor control
A sophisticated DC/AC generator board generates clean and stable power to drive the motor. Easily change speed with the push of only a single button.
New motor suspension
A good motor by itself, is already very quiet. To get the best performance out of it, we have improved the motor suspension. The X2 B‘s motor chassis is carefully balanced and suspended on a precision tuned TPE belt - this way the motor chassis is effectively decoupled from the main plinth for optimal performance.
9'' Carbon-Aluminium Tonearm
Compared with its little brother the X1 B, the tonearm is longer - 9“ in length - and the tube has a wider diameter. The carbon/aluminium sandwhich construction results in better internal damping. The increased mass makes the tonearm an excellent fit for low compliance MC cartridges.
Metal Feet
Damped & height adjustable
The three height adjustable damped aluminium feet guarantee the perfect stand & massively reduce risk of acoustical feedback.
The Tonearm
9'' Carbon-Aluminium Tonearm
Finished as a one-piece, with no resonance-inducing headshell, the X2 B can also be set for azimuth and VTA adjustment. The tonearm is then supplied with a TPE-damped counterweight.
Made in EU
Since 1991
Made in Europe by a turntable factory with decades of experience, it is a true hi-fi turntable which using our new True Balanced Connections takes your vinyl hobby to the next level.
| Specifications | |
|---|---|
| Wow & flutter | 33: 0.12% 45: 0.10% |
| Speed variance | 33: 0.25% 45: 0.20% |
| Principle | belt drive |
| Speed | 33, 45, 78 (electronic speed change) |
| Weight | 10 kg |
| Dimensions | 460 x 150 x 340 mm (WxHxD) |
| Power consumption | 4,5 watts max / 0.3 watt standby |
| Included accessories | 15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltmat |
| Tracking force range | 0 - 30mN |
| Effective tonearm mass | 13,5g |
| Overhang | 18 mm |
| Effective arm length | 230 mm |
| Tonearm | 9” carbon/aluminium sandwich |
| Platter | 30mm thick, 2 kg heavy acryl |
| Main bearing | stainless steel/brass |
| Signal to noise | 70 dB |
