PSB Speakers CustomSound In-Room Subwoofer In Satin Black - CSIR SUB (B)
PSB Speakers CustomSound In-Room Subwoofer In Satin Black - CSIR SUB (B)
PSB Speakers CustomSound In-Room Subwoofer In Satin White - CSIR SUB (W)

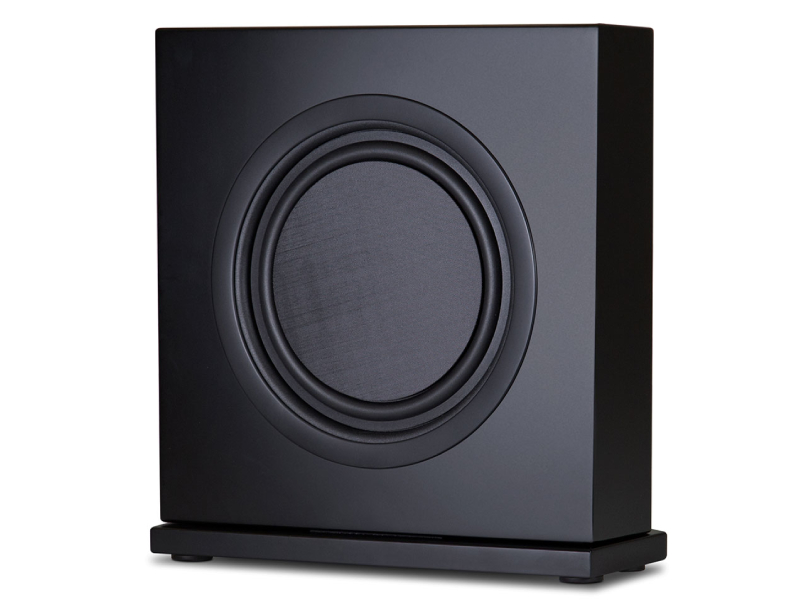

This In-Room Subwoofer offers several elegant and highly versatile solutions. Measuring a mere 15 3⁄4” x 15 3⁄4” x 4 3⁄4”, the CSIR SUB can disappear into the décor of any room, but its stylish design is a feature in and of itself.
Ultra-Slim 10” Passive In-Room Subwoofer
Three Placement Options:
- On-Wall with supplied mounting bracket
- On-Floor with supplied base
- Laid on its back for under or behind furniture
Ideal match with CS500W subwoofer amplifier
CustomSound™ CSIR SUB can be placed in 3 distinct ways. It can be mounted on a narrow, low profile plinth and placed upright. It can also be set on its back allowing it to be tucked out of the way, behind or under furniture. It comes with a mounting bracket, enabling the subwoofer to be wall mounted to maximize floor space.
The 10“, high performance shallow driver offers deep and resonant bass well beyond its modest size.
- High excursion, shallow driver with Glass fiber / PMI
- Foam sandwich cone, dual rubber surround
- Renowned PSB sonic signature, well suited for either music or home theater
- Design and final voicing engineered by Paul Barton
- ISO Acoustic feet for improved isolation and sound clarity
- Ideal match with CS500W subwoofer amplifier
- Gross Dimensions (w/o base):15¾ x 15¾ x 4¾” (W x H x D)
- Gross Dimensions (w/ base):15¾ x 17 x 5¼” (W x H x D)
| Specifications | |
|---|---|
| Frequency Response | 25-150Hz |
| Sensitivity | |
| Anechoic Chamber | 88dB |
| Listening Room | 90dB |
| Impedence | |
| Nominal | 8 Ohms |
| Acoustic Design | |
| Woofer (Nominal) | 10” (254mm), Glass fiber / PMI foam sandwich cone, Die Cast Basket, Rubber Surround, Balanced Drive motor structure |
| Specifications | |
| Recommended Power | 40-200 Watts |
| CONSTRUCTION | |
| Cabinet | MDF |
| Grille Face | Acoustic Transparent Cloth |
| Grille Frame | Wood |
| Size (W x H x D) | |
| Net Width | 15 3/4 “(400mm) |
| Net Hight | 17″ (432mm) |
| Net Depth | 5 1⁄4” (133mm) |
| Shipping Information | |
| Net Width | 21 1/4” (540mm) |
| Net Hight | 21 5/8” (550mm) |
| Net Depth | 11” (280mm) |
| Net Weight | 24 4/5 lbs |
| Shipping Weight | 32 1/2 lbs |
| Specifications | |
| Available Finishes | Satin Black, Satin White |
| Brackets | |
| Wall Bracket | Included |
| Floor Stand | Included |
