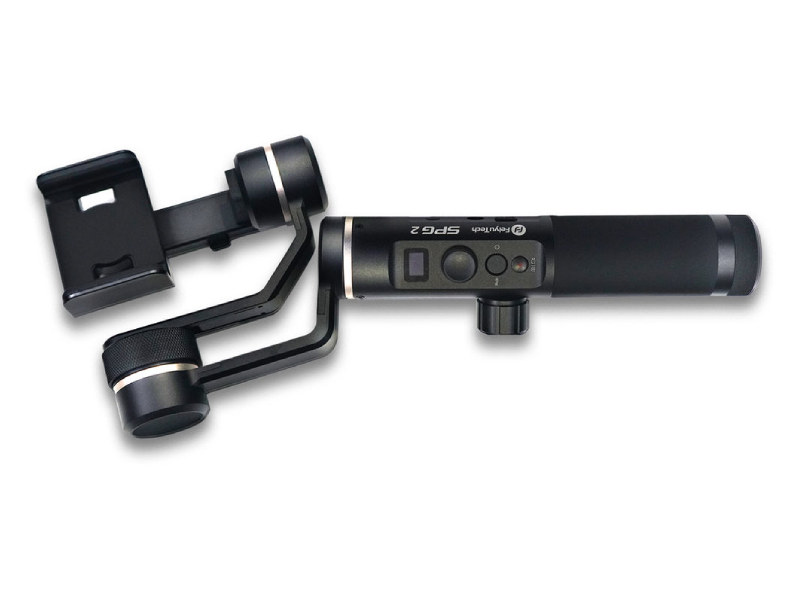

Feiyu Tech 3-Axis Stabilized Handheld Gimbal for Smartphone - SPG2

Bluetooth dual-mode enables the mobile phone audio interface to get better audio quality

Data and audio Bluetooth dual channel connection not only provides data channels for gimbal and mobile phone, but also provides audio expansion interface for external audio receiving equipment.

Remarks: 1: Audio jack on the handle part of SPG2 only supports American standard mic. If you have National standard mic, Please find 3.5mm Audio Jack CTIA to OMTP adapter to fit for SPG2.

2:The mic should be compatible with smartphones, if you have mic for camera, please find the adapter. If more info.needed, please check user manual.

Easily switch between horizontal and vertical shooting mode

better Tik Tok/Live Show/ Vlog playing experience

Unique multifunctional "magic ring" brings unlimited creative possibilities

By connecting Feiyu ON App, you can use “magic ring” to manually control the following focus and zooming of the phone, and precisely adjust the rotation of pan, roll and tilt motors.

Support parameter adjustment

Support the parameter setting such as zooming, manual follow focus, ISO, white balance, exposure value, zooming speed, motor strength, follow speed , virtual joystick, offline system upgrading and so on.

Panorama photography

Panoramic shooting, automatic framing, cool playing method enables you to lead the latest fashion trend among your friends.

Anti-shake "core" algorithm Super motor supplies powerful driving force

With new iterative W5 anti-shake algorithm combining, high-precision brushless motor, low power consumption, large torque, the ultra-high load capacity for mobile phone with stronger anti-shake stability, and the 1/4-inch threaded port, SPG 2 enables more accessory expansion to meet the needs of gimbal modification enthusiasts.

OLED display shows the device status clearly on one screen

Low power consumption OLED display screen can display the parameters, current operating mode, battery power level, Bluetooth connectivity, and other status of the gimbal and camera.

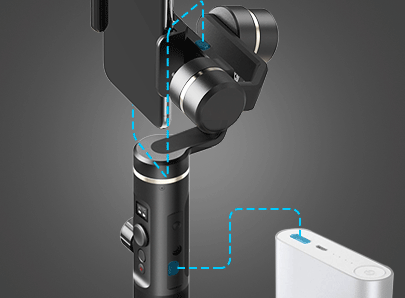

Two-way power supply, 14 hours of battery life

The gimbal with output interface for mobile phone phone power charging, supports charging by power bank in use. Large capacity battery working with low-consumption motor provides battery life as long as 14 hours.

Balance & Switching Between Landscape and Portrait Modes

• Landscape Mode: balancing cellphones weighed differently by knob ring
• Portrait Mode: 1) rotate the holder 90°and insert cellphone, finding just the right distance from the buttons on cellphone and moving cross arm until cellphone can stop at where you point it to.
• 2) when gimbal is in landscape mode, and tilt motor is placed on the right hand side, long press trigger button then single tap function button to switch to portrait mode. Double click trigger button to exit portrait mode.

Working Modes & Functions of Buttons

Function Button operations

1. Single tap: switch between panning mode HF (Default mode) and lock mode LK.
2. Double tap: follow mode TF, enter panning mode HF by single-tapping in this mode.
3. Triple tap: all follow mode AF, enter panning mode HF by single-tapping in this mode. Roll axis could be controlled by joystick to rotate 360°which creates Dutch-angle Shots in AF mode when gimbal is parallel to the ground.
4. Quadruple tap: auto-rotation Mode, perfectly fit for time-lapse. You can set up the start, the finish and the rotation route by hand in this mode. When setting is done, gimbal will be automatically rotated following pre-set route in a constant speed, and stop at the end position when rotation is done (Find more details in the manual of SPG2).
5. 5 Quintuple tap: initialize the gimbal in order to get correct attitude parameters when it is not level or in abnormal status.

Note: "Initing" shows up in the display after tapping function button 5 times. SPG2 automatically detects whether or not it is placed on a static flat surface (see below). Initialization will be done automatically once the gimbal is placed on a static flat surface, and "Init Complete" will be displayed. Otherwise, SPG2 is keeping detecting and waiting. Please pick up gimbal and single tap function button to wake up it when initialization is done.

Shutter Button operations

1. Control of phone camera: pair with cellphone, single tap shutter button to take photos or videos (switch to either photo or video interface by hand).
2. Control of App camera: control the camera in Vicool APP to take photos or videos when gimbal successfully connects with the app (single tap for taking photo, press shutter button 2-3s for shooting. You can take photos while shooting).
3. Switch of front&rear camera: double click shutter button to switch front&rear camera when the app is connected with gimbal.

Setting Button operations

1. Switching Between Shooting Modes: when Vicool is fully connected, single tap setting button to switch shooting modes in the app (Video, Panorama, Time-lapse and Slow Motion).
2. Adjust Volume: connect to audio Bluetooth of gimbal in Bluetooth list of cellphone,long press setting button to switch between the main interface and the volume interface. Adjust the volume by moving the joystick up/down.

Trigger Button operations

1. Enter Fast Follow Mode: press and hold trigger button in either Panning Mode or Follow Mode to enter Fast Follow Mode. Release it to go back to the previous mode. Fast Follow Mode gets a little more involved with shots in which the tracking should be fast, like riding motorcycles, skateboarding, parkour, chasing. It is also suitable for transition.
2. Reset: double tap trigger button to reset gimbal. Panning mode HF is activated, and all three axis go back to the default position.

Horizontal Adjustment Button operations

This button can control roll axis to rotate between +30°to -30°. Double click trigger button to reset if needed.

Multi-function Knob operations

1. Camera Control: single tap to switch among W/T，ISO, WB and EXP in the main interface of Vicool and adjust parameters of the chosen option by rotating the knob (W/T is the default option).
2. Switching Between Devices: long press about 1s to switch between camera control and gimbal control.
3. Gimbal Control: single tap to switch among Pan Control, Roll Control and Tilt Control whilst rotate the knob gives you fine-grained control on the chosen axis.

Audio Port

The following features could be performed on the basis of connecting audio Bluetooth of gimbal in the Bluetooth list of cellphone.

1. Sound Recording: plug phone jack of headphone or Mic into audio port, then could do sound recording.
2. Answer Calls: when there is a phone call and headphone inserted, single click trigger button to answer the call and single click again to hang up.

APP Features

Face/Object tracking; Panorama; Time-lapse; Slow Motion(available to Android phones which support 120fps slow motion); Freeze-Frame shot; Zoom; Virtual Remote Control; BT Sound Recording; Battery and Cellphone Storage indicator; Motor Dynamics and other parameters setting; Horizontal Calibration; Video Editing and Share.

Sound Recording

Use headphone or mic to sound better while recording is recommended, and that is on the basis of either connecting audio Bluetooth of gimbal in the Bluetooth list of cellphone or connecting gimbal to Vicool.

For third-party applications which should support HFP protocol then could do sound recording by mic.

By far, SPG2 only supports headphone jacks with American Headset Jack (AHJ) standard. An adapter is necessary for Headphone jacks with Open Mobile Terminal Platform (OMTP) when recording.

Different color in insulation rings distinguishes AHJ from OMTP.

AHJ: white

OMTP: black

Main functions for users

Initialize the gimbal in order to get correct attitude parameters when it is not level or in abnormal status.

Upgrade the firmware by computer (USB adapter is needed and purchased separately).

Face/Object tracking, Panorama, Time-lapse, Slow Motion, Zoom, Parameters Setting and Horizontal Calibration are included in Vicool app.

Control cellphone to take photo/video (both phone camera and App camera)

Feature

• Excellent splash-proof technology, no more resistance between you and the rain.
• It is pretty straight-forward to get information from OLED screen.
• Find an easy way to shoot by one button.
• Capture every moment in spectacular detail with Fast Follow Mode.
• Dutch-angle shot is a piece of cake with 360 degree rotation of the Roll.
• Audio jack for better sound recording,
• Original multifunction knob provides infinite possibilities of creation.
• Have fun in live streaming with both landscape and portrait modes.
• 5000mAh battery provides a full supply of power to gimbal and cellphone.
• Extended interfaces for a variety of compatible accessories.
• Vicool app offers multiple options to meet your needs.
• Multiple working modes fit for most scenes.
