TOA Remote Microphone with 9000M2 Series Mixer Amplifiers - Q-RM9012
$406.56 CAD
Literature
You may also like
$202.22
$353.44

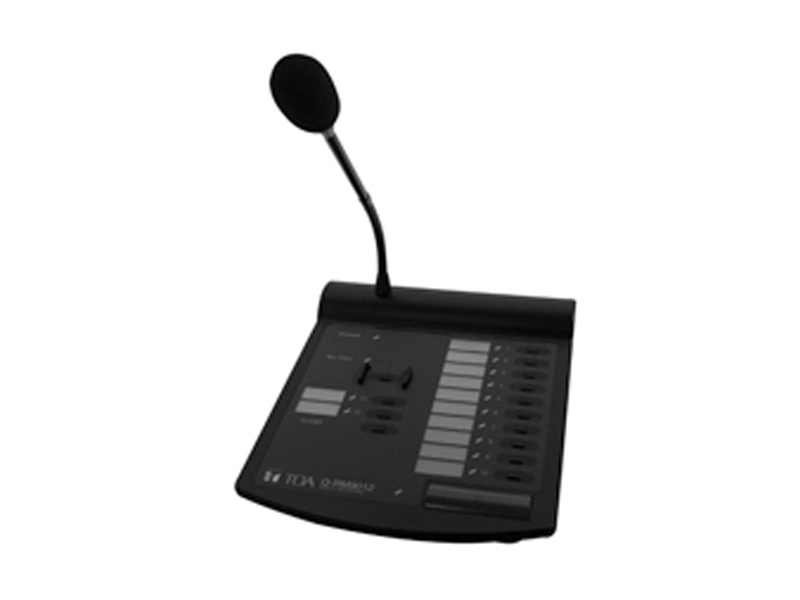

Q-RM9012 is a remote microphone used in conjunction with 9000M2 Series Mixer Amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal inorder to initiate / terminate the paging. This unit requires DC 24V power supply.
| Feature | |
|---|---|
| Power Source | 24 V DC from AC adaptor AD-246 or the equivalent |
| Power Consumption | 80mA or less |
| Audio Output | 0 dB*, 600Ω transformer balanced, RJ45 connector |
| Distortion | 1% or less |
| Frequency Response | 100-20,000Hz |
| S/N Ratio | 60dB or more |
| Microphone | Unidirectional electret condenser microphone |
| Control Output | 12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors |
| Number of Keys | 12 zone selection keys, all call key, cancel key, talk key |
| Volume Control | Microphone volume control |
| Operating Temperature | -10°C to +40°C (14°F to 104°F) |
| Finish | ABS resin, black |
| Dimensions | 190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded) |
| Weight | 750g (1.65 lbs) |
| Option | AC- Adaptor: AD-246 |
