Feiyu Tech Wearable Action Camera Gimbal - WG2X

Main features

• Lighter gimbal to lighten the load.
• Unlimited rotated angles in tilting and panning motor to take wide footage.
• Splashproof function let you make a smooth clip in a foggy day.
• Session adapter with long screws,allow you switch between Hero and Session series easily.
• The optional RX0 adapter gives you more choice.
• Soft protection pad on the panning motor to well protect the camera.
• Anti-slip design on the button and side, make you hold it steadily .
• Power on and off with a reminder of the beep can be heard clearly outdoors.
• Automatically enter standby mode if turning on without camera to protect the motor.
• Intelligent initialization automatically check motionless desk and finish it with a reminder of the beep.
• Intelligently follow pre-set route in auto-rotation mode, fit for motion time-lapse or automatic shooting.
• Quick upgrade ,set up the parameter ,reset and virtual remote control with APP.
• Several working mode make most of the videos easily to be done.
• Suitable for all the accessories of Gopro base adapter with 1/4 inch T-head connector, which can be mounting on helmet, bicycle, selfile pole,etc.
• Compatible with extension bar and tri-pod with 1/4 inch thread hole at the button and side.

Light stable-master, always with you

Payload 130g, compatible with GoPro HERO 4/5/6/7，GoPro Session or any other similar size action camera.

WiFi control, rapid shooting.

We know your GoPro needs an immediate response to shoot, however, the more convenient way with Wi-Fi shooting based on the gimbal connection with camera compared to voice control can lead to the‘fast shoot’.

Wi-Fi Connection | Control the Camera | Parameters

Elevation design, the sense of world from Geek

FeiyuTech Red Dot Award design team shows the Geek creative design sense, innovative exclusive elevation-design to avoid the negative impact by roll motor. Therefore, the easy and excellent vision results in good shots, and action will show the sport in a better way.

Stable Base

Stable mount, newly upgraded

This time, the specially designed base with an entirely new upgraded result to the all-round stabilization than ever. No matter how you hang or wear the gimbal, the FeiyuTech platform performs 2000/s real-time calibrations to ensure stable shooting which can't be replaced by optical anti-shake methods.

Expansion thread hole

Thread hole at bottom increased expansion ways

There is a 1/4 inch threaded hole on the bottom of the WG2X which it makes more expandable. The WG2X uses advanced attitude sensor technology which can automatically adjust the angle with whatever mounting method in different application scenes.

Two axis angle unlimited

360°+360°, two axis angle unlimited

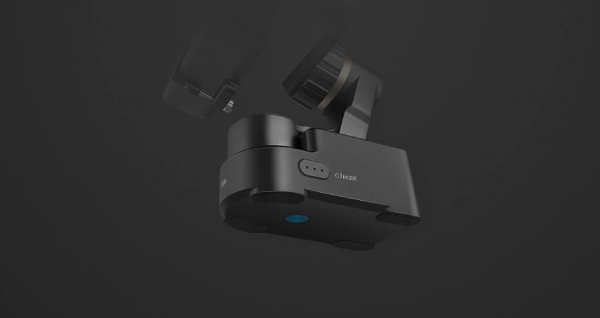

Panning and tilt axis motors use slip rings to realize 360° unlimited rotation.

Follow mode, time to crazy.

Double-click the mode button,and the pan and tilt axis will respond fast to your rotation, empowering your action camera to become agile and fast, which is the real-response based on mind.

Light travel, more freedom

The WG2X benefits from strong composite materials, the body only weighs 238g, which is similar to a packet of chips. Enjoy light stable mastery to keep you free and relaxed while wearing it during travel.

238g (Net weight) | 135g (Load weight) | 89.3mm (Length)

Born for Sports, Strong momentum

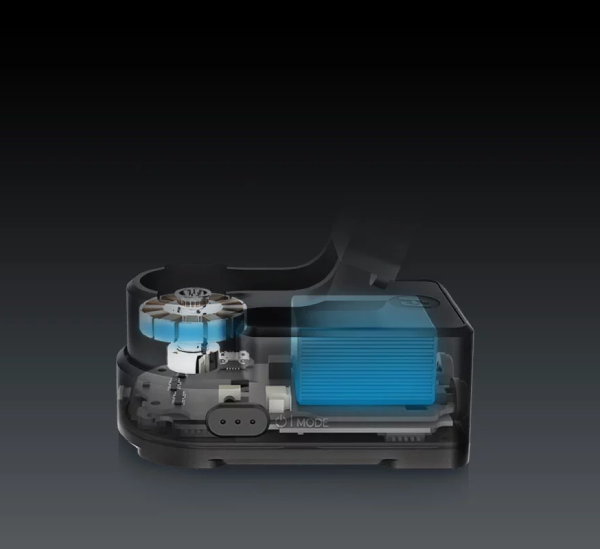

FeiyuTech's new platform with anti-shake calculation combines with the Lightweight brushless motor to maintain high torque, strong power and low power consumption. You can enjoy the 2.5 hours power lasting capability to record a full World Cup match!

Working mode(Operate with function button)

Function button:

1. Single tap: Switch between panning mode(default mode) and lock mode
2. Double tap:Panning and tilting mode, enter panning mode by single-tapping in this mode.
3. Triple tap:The lens can be rotated 180°in horizontal, working together with the function of manual lock, you can take a selfie or video with special angle. This function will not work in lock mode.
4. Quadruple tap: Auto-rotation Mode, perfectly fit for time-lapse. You can set up the starting and ending point, the route in this mode.After Completely set up,the gimbal will be automatically rotated following pre-set route in constant speed ,which is set up in App before.(Check more details in the manual of WG2X)
5. Fifth tap:Initialization. In this mode , you can adjust the tilting gimbal. (Note:After fifth tap,the gimbal will automatically check whether you put the gimbal on stationary desk,the indicator will be solid blue;it will start Initialization once successfully be put on stationary desk and the indicator will flashes blue 3 times,click the function button once to wake the WG2X up. If not, it will wait until the placement is done.)

Mode Button:

1. Long press:Turn on/turn off the wifi
2. Single tap:switch the shooting mode of camera after connecting to the camera
3. Triple tap: The lens can be rotated 180°in horizontal, working together with the function of manual lock, you can take a selfie or video with special angle.

Shutter button :

• Single tap:Start/stop shooting after connecting to the camera
• Manual lock
• Rotate the tilting motor to any angle as you need, and it will stay there by holding for half a second.(Note:you can’t use this function in panning and tilting mode)

Main functions for users

• Initialize the gimbal.
• Upgrade the firmware by your PC(the USB connector is necessary).
• Manually set up the starting and ending point of Time Lapse in auto-rotation mode.
• Manually lock the tilting motor in any angles.
• Upgrade ,Virtual remote control and set up the parameter with Feiyu On.
• Connect to Gopro Hero 7/6/5 and control the related function.
